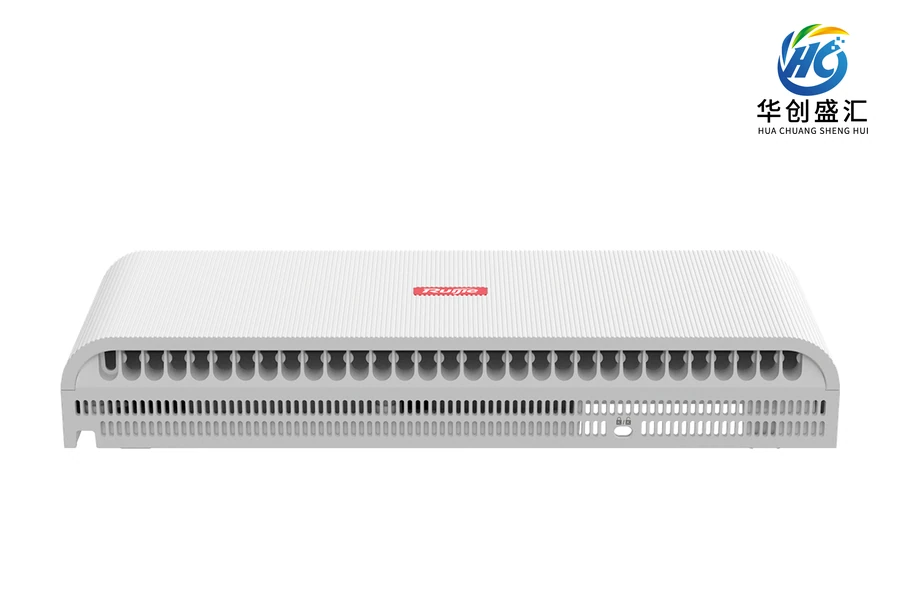

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-IF2920U-12GT1XS switch
Model：RG-IF2920U-12GT1XS
Product family：RG-IF2920U系列极简光入室交换机
RG-IF2920U-12GT1XS Ruijie switch for network equipment selection.
Product overview
RG-IF2920U-12GT1XS is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 固化业务接口 | Original manufacturer specification: 1 2 个 10/100/1000BASE-T 自适应电口 1 个 1 G/ 1 0G SFP+ 光口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 交换 容量 | 432Gbps/4.32Tbps |
| Technical specification: 包 转发率 | 63Mpps/126Mpps |
| Technical specification: SFP + 光接口 | Original manufacturer specification: 支持 10GBase- X 和 1000Base-XSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Power supply | Original manufacturer specification: 电源适配器供电： ● 额定输入电压： 100-240V AC ， 50/60Hz ● 最大输入电压： 90-264V AC ● 额定输出电压： 12V 额定输出电流： 1.0ASome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: EEE 节 能 | Supported: |
| Technical specification: PoE 输出 | Original manufacturer specification: 不支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机 功率 | Original manufacturer specification: 整机功耗 ≤ 10WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 工作温度 | Original manufacturer specification: 桌面场景： 0 º C 到 40 º C （ 0-1800m 海拔） 桌底 / 挂墙 / 抱杆场景： 0 º C 到 45 º C （ 0-1800m 海拔） 说明：海拔 1800~5000m ：海拔每升高 220m ，最高温度规格降低 1 ℃。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 存储温度 | Original manufacturer specification: -40ºC 到 70ºCSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 工作湿度 | Original manufacturer specification: 10% 到 90% RHSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 存储湿度 | Original manufacturer specification: 5% 到 95% RHSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Fans | Original manufacturer specification: 无风扇自然散热Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 智能控温 | Original manufacturer specification: 支持温度告警及高温保护功能Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
