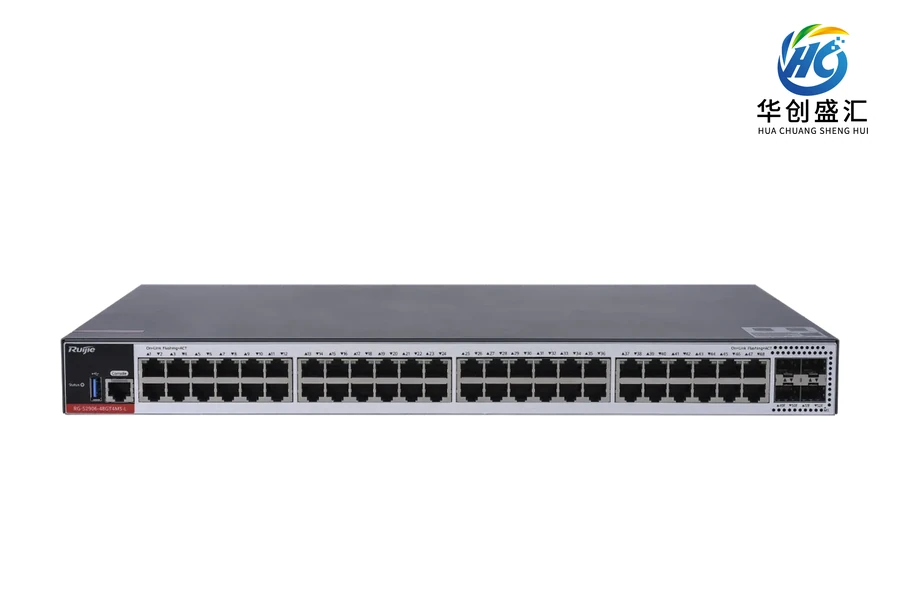

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S2906-48GT4MS-L switch
Model：RG-S2906-48GT4MS-L
Product family：RG-S2906-L系列千兆交换机
RG-S2906-48GT4MS-L Ruijie switch for network equipment selection.
Product overview
RG-S2906-48GT4MS-L is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Switching capacity | 432Gbps/4.32Tbps |
| Forwarding rate | 144/166Mpps |
| Technical specification: 固化业务接口 | Original manufacturer specification: 48个10/100/1000Base-T自适应以太网接口 4个1GE/2.5GE SFP接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个RJ45 Console接口，1个USB接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 线缆热插拔 | Original manufacturer specification: 业务接口与电源接口支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品尺寸（宽×深×高） | Original manufacturer specification: 440.0mm x 220.0mm x 43.6mm (V1.XX) 440mm x 260mm x 44mm (V2.XX及以上版本)Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 机架尺寸 | 1RU |
| Technical specification: 产品重量 | 2.8 kg |
| Technical specification: 安装方式 | Original manufacturer specification: 壁挂/机架/机柜Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Power supply | Original manufacturer specification: 1个固化电源Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机最大功耗 | 30W |
| Technical specification: 额定输入电压 | 100V AC~240V AC，50~60Hz |
| Technical specification: 最大输入电压 | 90V AC~264V AC，50~60Hz |
| Technical specification: PoE接口 | Original manufacturer specification: 不支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
