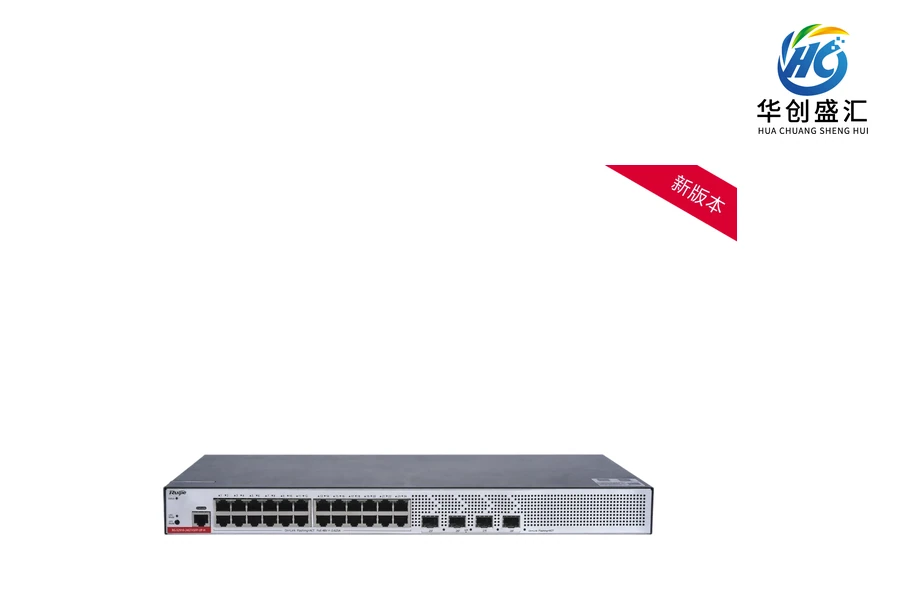

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S2910-24GT4SFP-UP-H switch
Model：RG-S2910-24GT4SFP-UP-H
Product family：RG-S2910-H系列千兆PoE交换机
RG-S2910-24GT4SFP-UP-H Ruijie switch for network equipment selection.
Product overview
RG-S2910-24GT4SFP-UP-H is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 固化业务接口 | Original manufacturer specification: 24个10/100/1000M自适应电口，4个千兆SFP光口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 672Gbps/6.72Tbps |
| Forwarding rate | 126Mpps |
| Technical specification: 产品尺寸（宽×深×高） | Original manufacturer specification: V6.XX及以下版本：440mm x 260mm x 44mm V7.XX版本：440mm x 220mm x 43.6mmSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品重量 | Original manufacturer specification: V6.XX及以下版本：5.5 kg（含包装） V7.XX版本：2.85 kgSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 电源输入 | Original manufacturer specification: V6.XX及以下版本 交流（AC）输入： 额定电压范围100V~240V，频率50/60Hz 最大电压范围90V~264V，频率50/60Hz 高压直流（HVDC）输入： 输入电压范围192V~290V V7.XX版本 交流（AC）输入： 额定电压范围100V~240V，频率50/60Hz 最大电压范围90V~290V，频率50/60Hz 高压直流（HVDC）输入： 输入电压范围190V~290VSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE供电标准 | Original manufacturer specification: 24个电口支持PoE和PoE+Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机最大功耗 | Original manufacturer specification: 40W（不带PoE负载） 460W（PoE满载）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 风扇监控 | Original manufacturer specification: 支持风扇调速及风扇故障告警功能Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 工作温度 | 0℃~50℃ |
| Technical specification: 存储温度 | -40℃~70℃ |
| Technical specification: 工作湿度 | 10%~90%RH |
| Technical specification: 存储湿度 | 5%~95%RH |
| Technical specification: 工作海拔 | -500m~5000m |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
