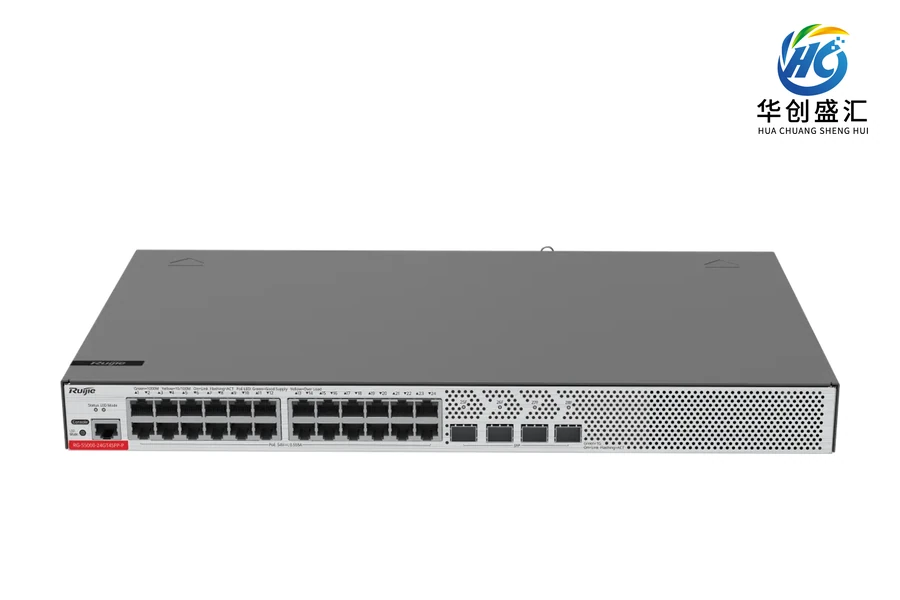

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S5000-24GT4SFP-P switch
Model：RG-S5000-24GT4SFP-P
Product family：RG-S5000系列千兆交换机
RG-S5000-24GT4SFP-P Ruijie switch for network equipment selection.
Product overview
RG-S5000-24GT4SFP-P is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Switching capacity | 672Gbps/6.72Tbps |
| Forwarding rate | 171Mpps |
| Technical specification: PoE供电标准 | Supported: PoE/PoE+ |
| Technical specification: 固化业务接口 | Original manufacturer specification: 4个1G SFP接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个RJ45 Console接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化电源数量 | 1 |
| Technical specification: 固化风扇数量 | 1 |
| Technical specification: 整机最大功耗 | Original manufacturer specification: 40W（不带PoE负载）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 额定输入电压范围 | 100V AC~240V AC，50~60Hz |
| Technical specification: 最大输入电压范围 | 90V AC~264V AC，50~60Hz |
| Technical specification: 额定输入电流 | 6.8A |
| Technical specification: 产品尺寸（宽×深×高） | Original manufacturer specification: 440mm x 220mm x 44mm V2.XX版本：440mm x 220mm x 43.6mmSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Weight | 3.8kg |
| Technical specification: 机架尺寸 | 1RU |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
