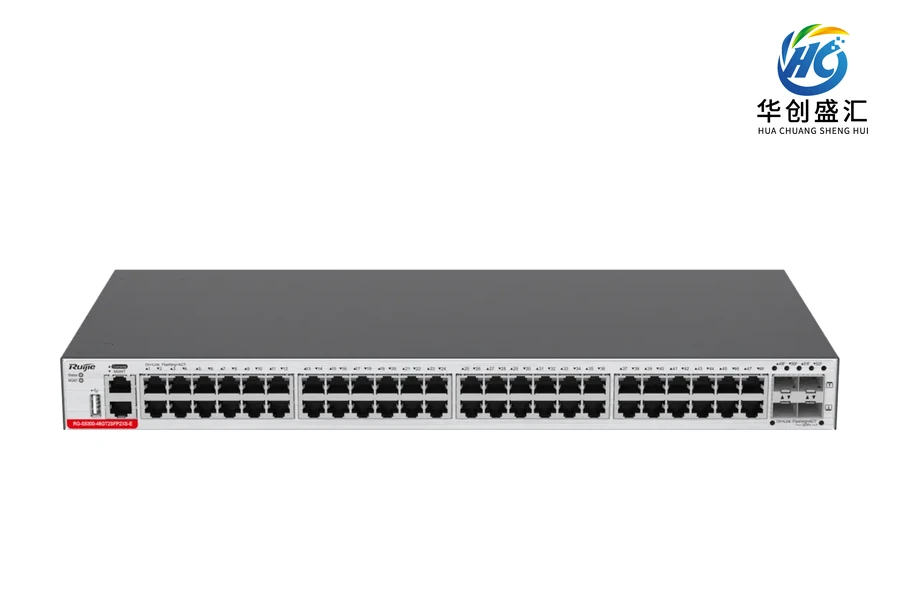

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S5300-48GT2SFP2XS-E switch
Model：RG-S5300-48GT2SFP2XS-E
Product family：RG-S5300-E系列新一代千兆交换机
RG-S5300-48GT2SFP2XS-E Ruijie switch for network equipment selection.
Product overview
RG-S5300-48GT2SFP2XS-E is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 固化业务接口 | Original manufacturer specification: 48个10/100/1000M自适应电口，2个千兆SFP光口，2个1G/10G SFP+光口（默认速率为1G） 注：2XS 10G速率需要单独购买软件授权Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 672Gbps/6.72Tbps |
| Forwarding rate | 166Mpps/219Mpps |
| Technical specification: 产品尺寸（宽×深×高） | 442mm×220mm×43.6mm |
| Technical specification: 额定输入电压 | Original manufacturer specification: 交流（AC）输入：100V~240V，频率：50/60HzSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 最大输入电压 | Original manufacturer specification: 交流（AC）输入，90V~264V，频率50/60HzSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机功耗 | ≤55W |
| Technical specification: 工作温度 | -5℃~50℃ |
| Technical specification: 存储温度 | -40℃~70℃ |
| Technical specification: 工作湿度 | 10%RH~90%RH |
| Technical specification: 存储湿度 | 5%RH~95%RH |
| Technical specification: 风扇监控 | Original manufacturer specification: S5300-24GT2SFP2XS-E V3.XX硬件版本和S5300-24GT4XS-E V3.XX硬件版本无风扇设计，自然散热 其他产品支持风扇调速及风扇故障告警功能Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 通信接口防雷 | Original manufacturer specification: 10KV（业务口） 4KV（MGMT口）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: MAC特性 | Original manufacturer specification: 支持32K MAC地址表项Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
