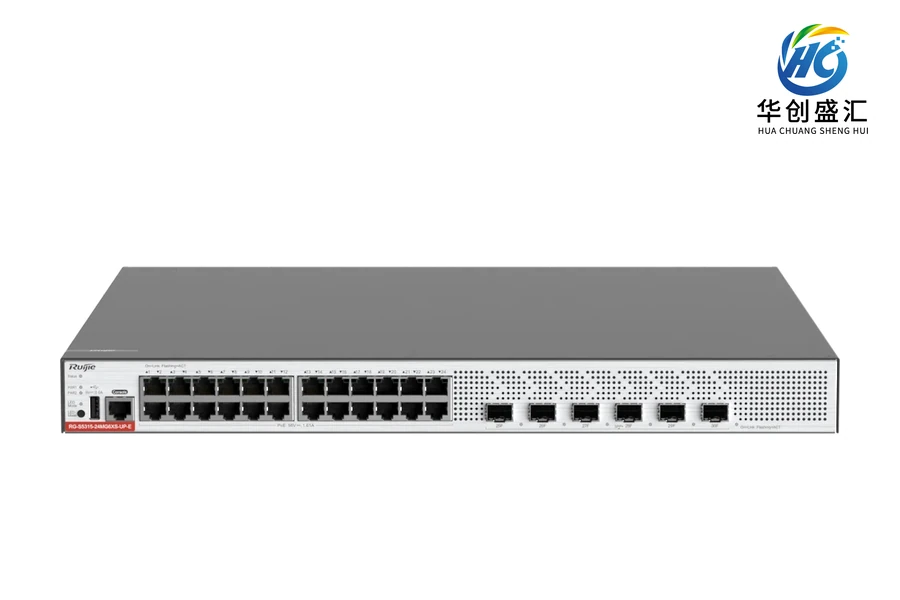

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S5315-24MG6XS-UP-E switch
Model：RG-S5315-24MG6XS-UP-E
Product family：RG-S5315-E系列2.5G多速率交换机
RG-S5315-24MG6XS-UP-E Ruijie switch for network equipment selection.
Product overview
RG-S5315-24MG6XS-UP-E is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 模块插槽 | Original manufacturer specification: 2个电源模块插槽Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化业务接口 | Original manufacturer specification: 24个100/1000/2500Base-T自适应以太网接口，6个1/2.5/10GE SFP+接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个RJ45的Console接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: USB接口 | Original manufacturer specification: 1个USB接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: USB热插拔 | Original manufacturer specification: USB接口支持热插拔Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 线缆热插拔 | Original manufacturer specification: 所有接口支持热插拔线缆Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 1.36Tbps/13.6Tbps |
| Forwarding rate | 225Mpps/770Mpps |
| CPU | Original manufacturer specification: MAC内置双核处理器，单核主频1GHzSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: Bootrom | 16MB |
| Technical specification: Flash Memory | 256MB |
| Memory | 1GB |
| Technical specification: 产品尺寸（宽×深×高） | 442mm×420mm×43.6mm |
| Technical specification: 机架尺寸 | 1U |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
