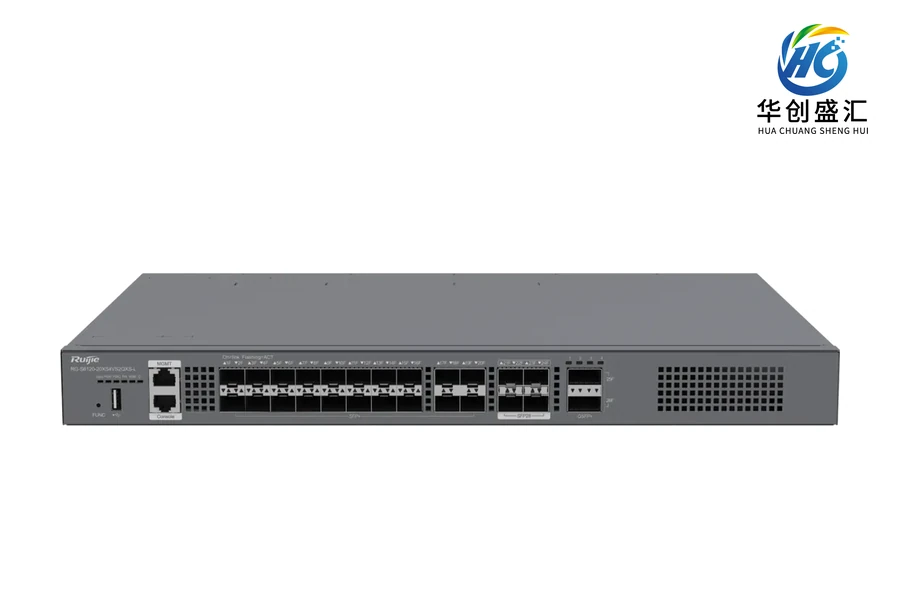

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S6120-20XS4VS2QXS-L switch
Model：RG-S6120-20XS4VS2QXS-L
Product family：RG-S6120-L系列万兆交换机
RG-S6120-20XS4VS2QXS-L Ruijie switch for network equipment selection.
Product overview
RG-S6120-20XS4VS2QXS-L is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Switching capacity | 2.56Tbps/25.6Tbps |
| Forwarding rate | 570Mpps/1260Mpps |
| Technical specification: 固化业务接口 | Original manufacturer specification: 2个40G QSFP+接口 4个10G/25G SFP28接口 20个1G/2.5G/10G SFP+接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个10/100/1000Base-T自适应以太网接口 1个USB 2.0接口 1 个RJ45 Console接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 模块插槽 | Original manufacturer specification: 2个电源模块插槽，2个风扇模块插槽Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 模块热插拔 | Original manufacturer specification: 支持电源热插拔Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 线缆热插拔 | Original manufacturer specification: Console口、USB口、业务接口与电源接口支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品尺寸（宽x深x高） | 440.0mm x 330.0mm x 43.6mm |
| Technical specification: 产品重量 | 4.6kg |
| Technical specification: 机架尺寸 | 1RU |
| Technical specification: 安装方式 | Original manufacturer specification: 桌面/壁挂/机架（柜）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机最大功耗 | 70W |
| Technical specification: 额定输入电压 | 100V AC~240V AC，50~60Hz 192V DC~288V DC |
| Technical specification: 最大输入电压 | 90V AC~264V AC，50~60Hz |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
