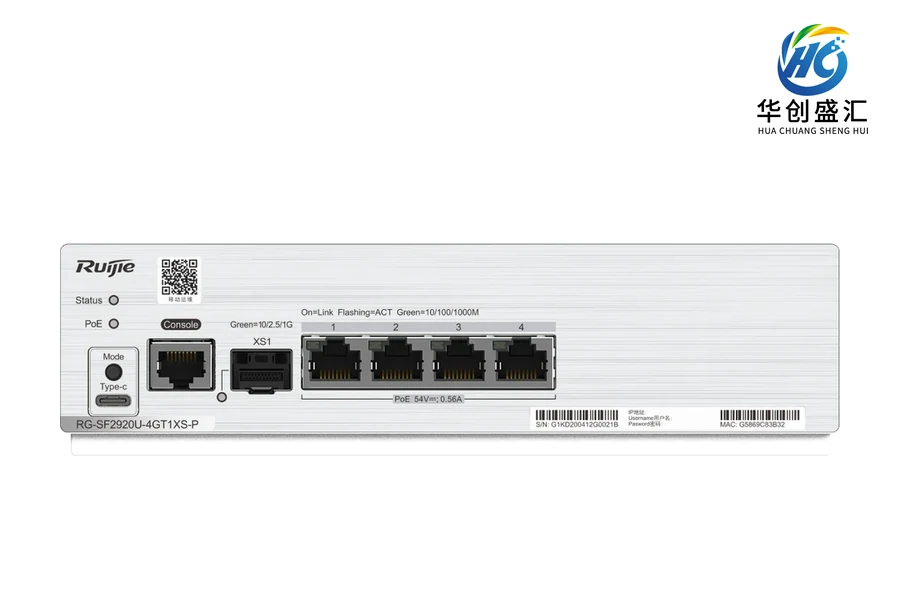

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-SF2920U-4GT1XS-P switch
Model：RG-SF2920U-4GT1XS-P
Product family：RG-SF2920U系列极简光入室交换机
RG-SF2920U-4GT1XS-P Ruijie switch for network equipment selection.
Product overview
RG-SF2920U-4GT1XS-P is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 固化业务接口 | Original manufacturer specification: 4个10/100/1000M自适应电口 1个1G/2.5G/10G SFP+光口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 672Gbps/6.72Tbps |
| Forwarding rate | 126Mpps |
| Power supply | Original manufacturer specification: 固化单交流电源Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 电源输入 | Original manufacturer specification: 交流（AC）输入： 额定电压：200V~240V 最大电压：180V~264V 频率：50Hz~60Hz 高压直流（HVDC）输入：支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机功耗 | Original manufacturer specification: 不带PoE负载：<10W PoE满载：<55WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE接口 | Original manufacturer specification: 1~4个电口支持PoE/PoE+供电Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE标准 | Original manufacturer specification: PoE供电设计支持IEEE 802.3af（15.4W）、IEEE 802.3at（30W）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE输出功率 | Original manufacturer specification: 整机最大45WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE功能 | Original manufacturer specification: 支持自动、节能供电管理模式 支持热启动不间断供电 支持端口优先级 支持对PoE端口定时上下电Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品尺寸 （宽x深x高） | 200mm x 170mm x 55mm |
| Fans | Original manufacturer specification: 支持无风扇，自然散热Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Temperature | Original manufacturer specification: 工作温度：0℃~45℃ 存储温度：-40℃~70℃Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Humidity | Original manufacturer specification: 工作湿度：5%~95%RH 存储湿度：5%~95%RHSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
